Handheld Ultrasound
Wireless Transvaginal Ultrasound Probe
wireless color Doppler transvaginal ultrasound probe for gynecology, reproductive medicine and mobile screening. Supports B, CF, PW, M, PDI, DPDI and puncture modes, with 5-9 MHz operation and Android, iOS and Windows connectivity.
Specifications
- Product Name
- Handheld Ultrasound Transvgianl Probe
- Frequency
- 5.0/6.5/8.0/9.0/H8.0/H9.0 MHz
- Mode
- B/CF/PW/M/PDI/DPDI/Pierce
- System
- Android / iOS / Windows

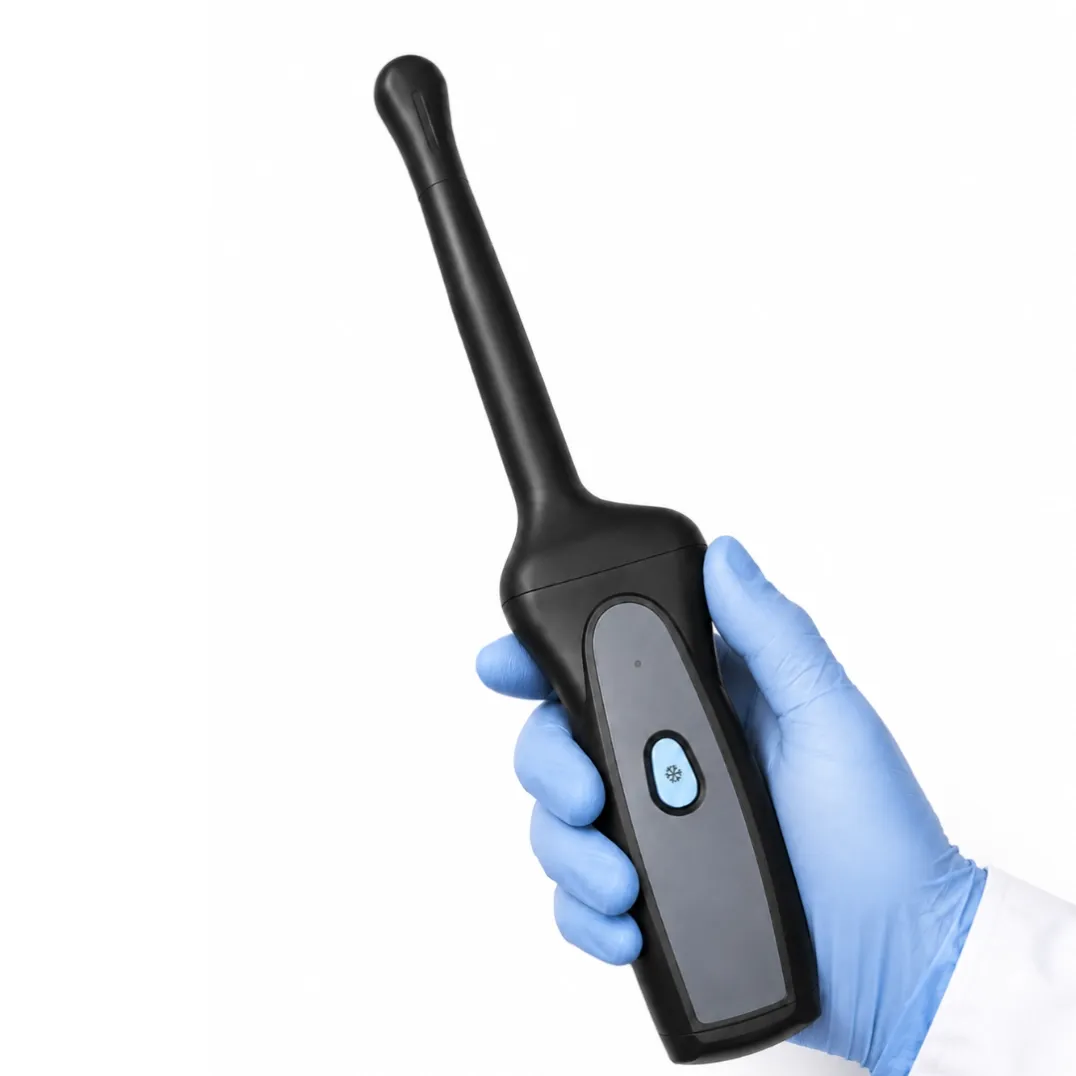

Wireless Transvaginal Ultrasound Probe
Wireless color Doppler transvaginal ultrasound probe designed for gynecology, reproductive medicine, bedside assessment and mobile screening. Images are transmitted to a compatible Android, iOS or Windows device through the probe’s internal Wi-Fi connection.
Key Features
• 5-9 MHz operating range and 30-150 mm imaging depth
• B, CF, PW, M, PDI, DPDI and puncture assistance modes
• Approximately 220 g for portable one-handed operation
• Wireless charging and internal Wi-Fi connectivity
Clinical Applications
• Follicular monitoring and reproductive medicine
• Routine gynecology and early pregnancy screening
• Uterine, ovarian and pelvic assessment
• Puncture guidance for applicable procedures
• Bedside emergency and mobile outreach examinations
• Prostate and pelvic urinary tract assessment
• Animal reproductive ultrasound testing
Technical Highlights
Frequency: 5.0 / 6.5 / 8.0 / 9.0 / H8.0 / H9.0 MHz
Imaging depth: 30-150 mm
Gain: 1-100%
Dynamic range: 36-120 dB
Compatible systems: Android / iOS / Windows
Charging: approximately 43% in 30 minutes and 100% in 60 minutes under the documented test conditions.
Request Product Information
Contact COSDA Medical to discuss compatible devices, software configuration, clinical applications and distributor or OEM requirements.
